Project / Stubbington

Rear Extension & Loft Conversion in Stubbington

A residential project in Stubbington, comprising a single-storey rear extension and rear dormer loft conversion.

LocationStubbington, Hampshire
ProjectRear Extension & Loft Conversion
Drawing SetProposed Ground & First Floor
The Design

The extension and loft conversion drawings show the kitchen/diner arrangement, new loft accommodation, rear dormer, elevations and section through the building.

Explore the project photographs and examples of planning drawings and Building Regulations drawings below.

Before

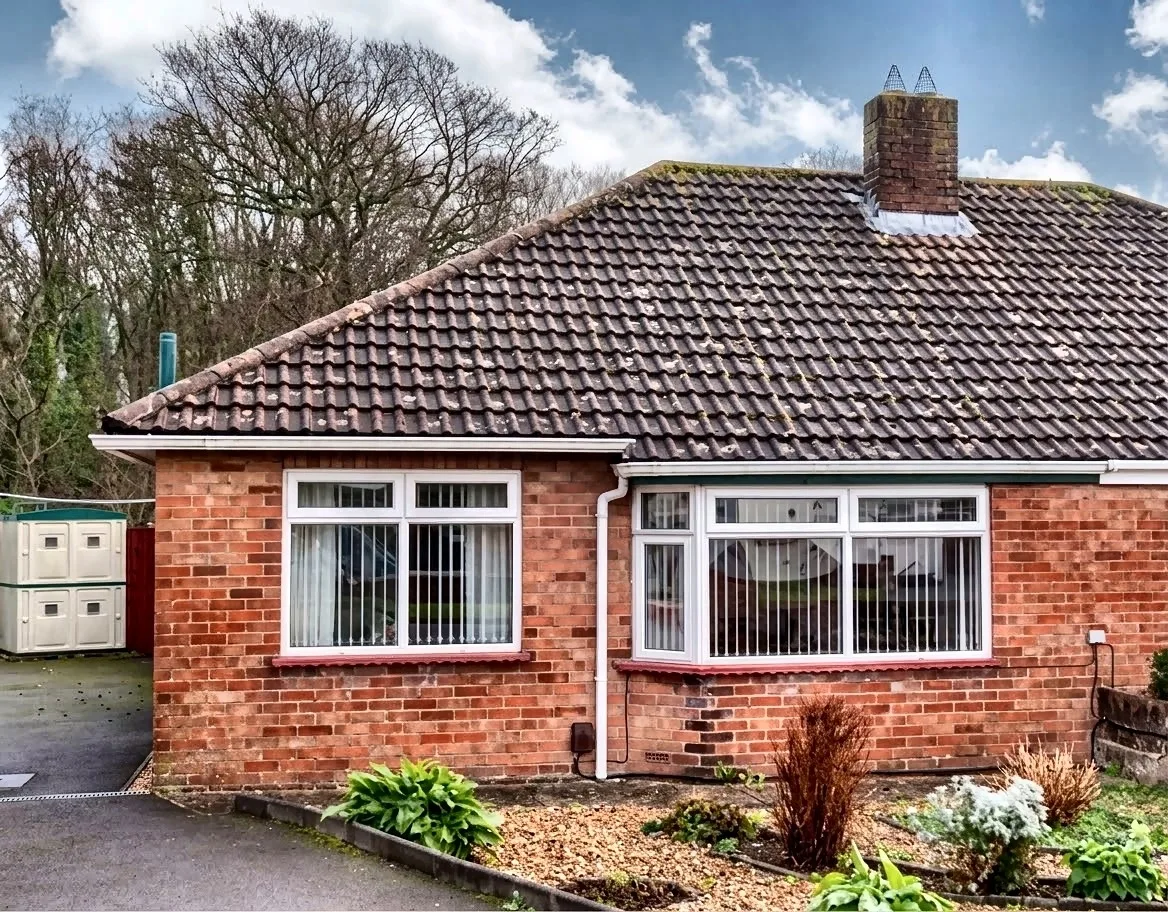

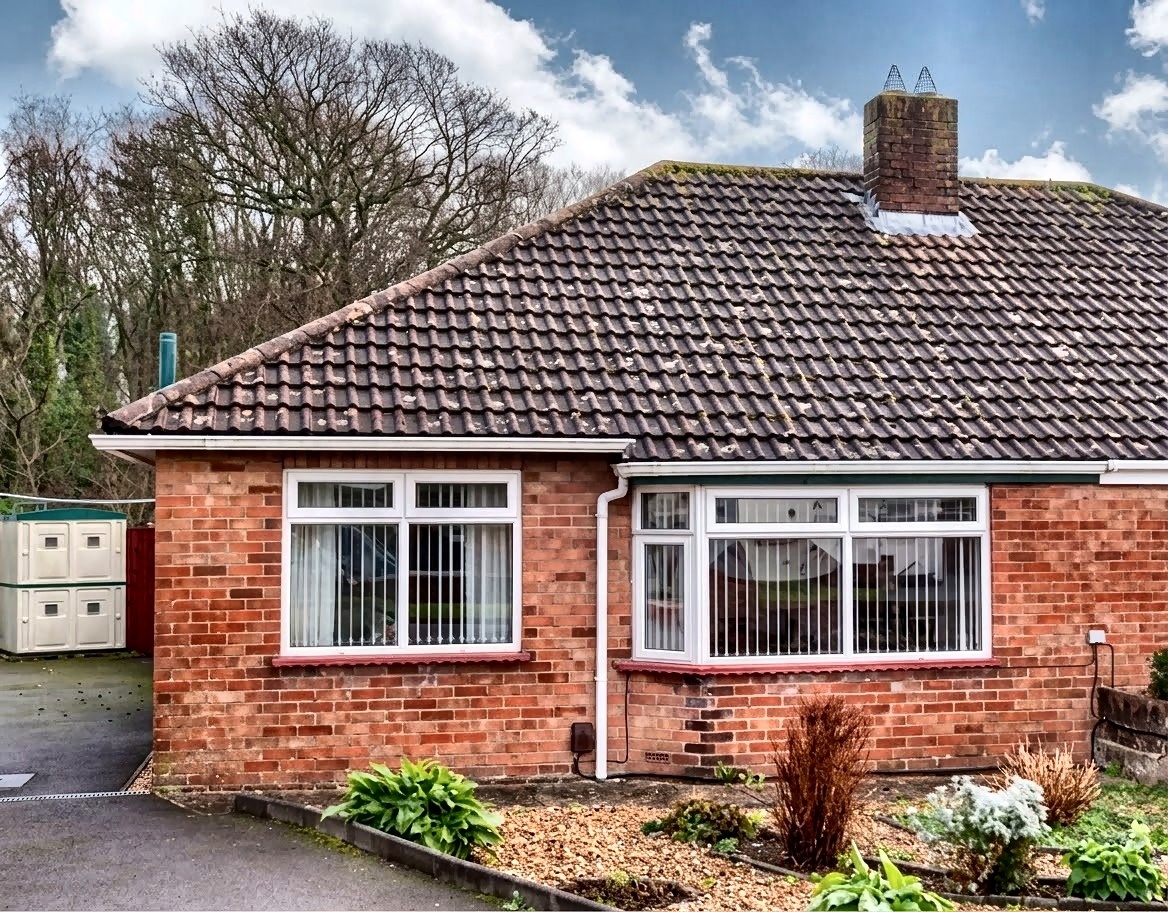

Existing front of property before the works

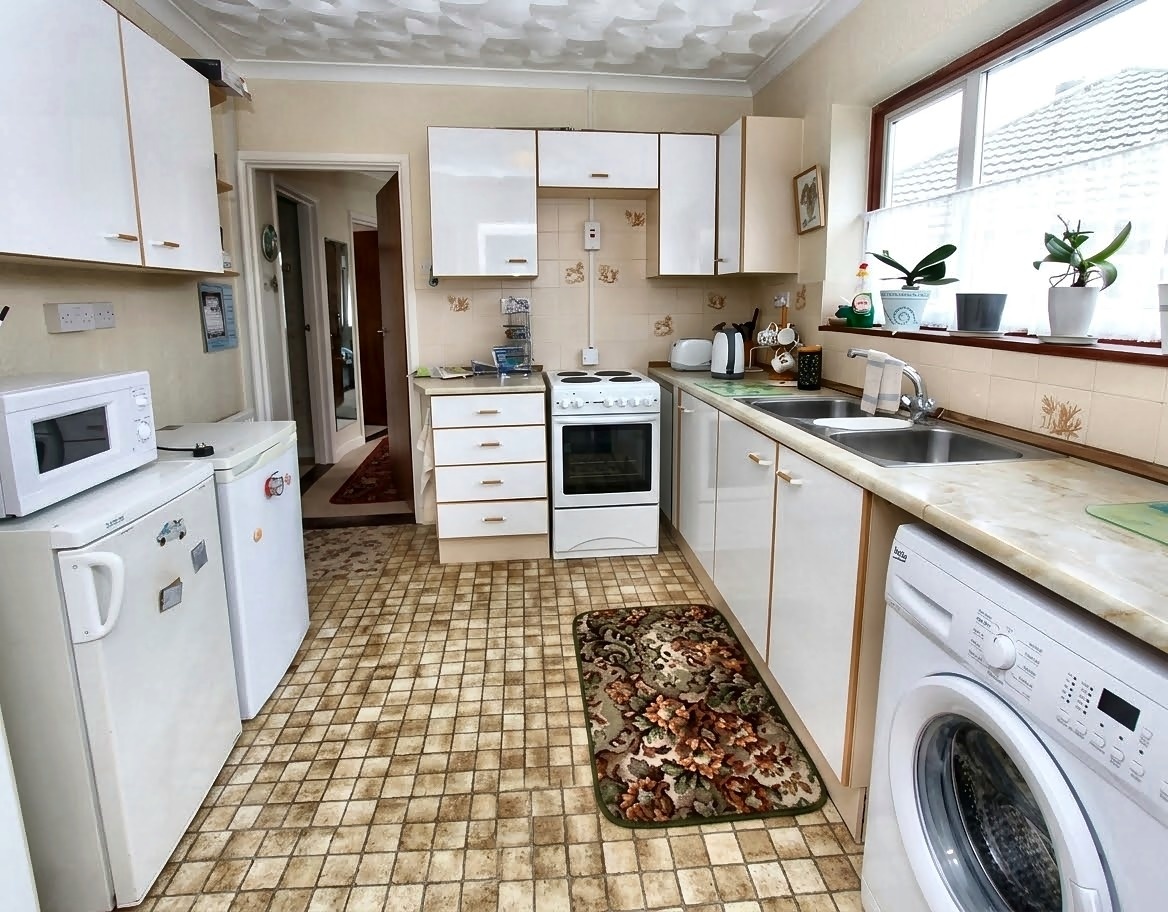

Existing kitchen before the extension and alterations

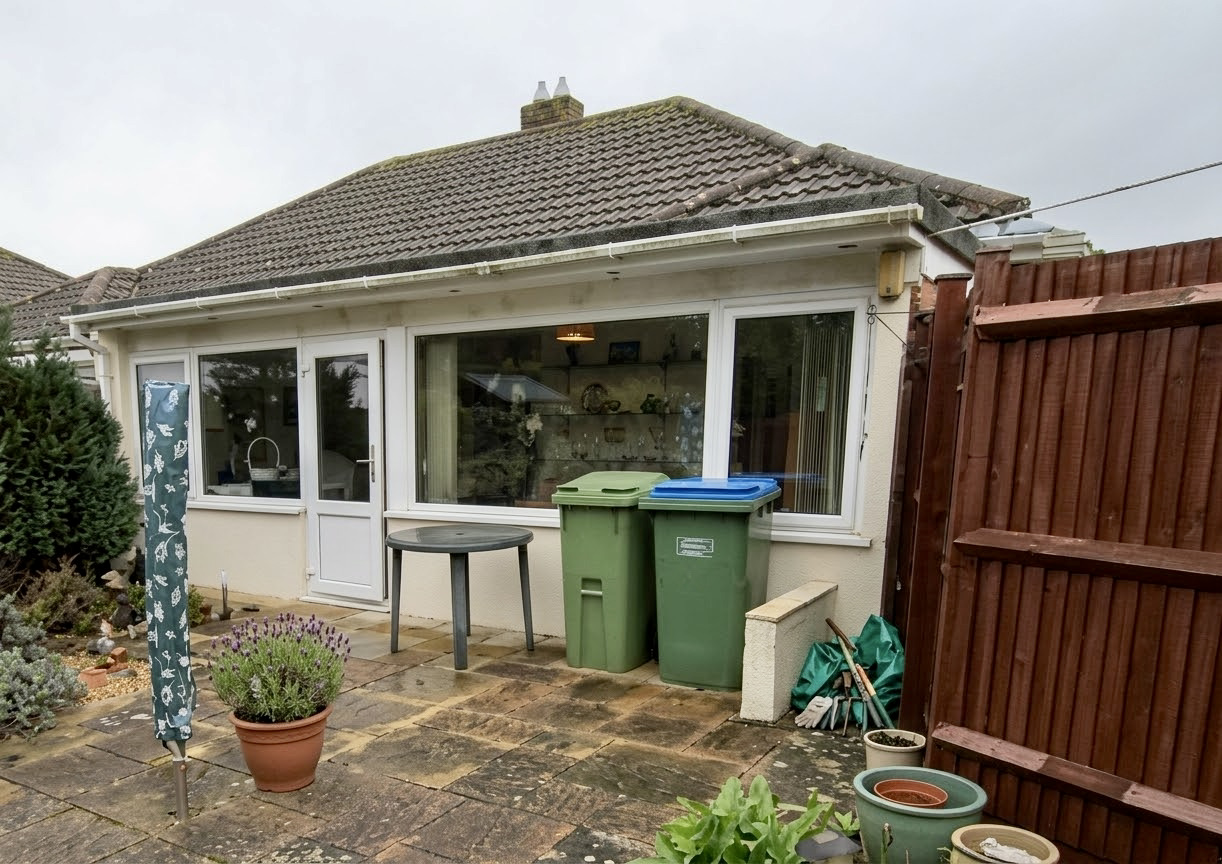

Existing rear elevation of the Stubbington property before the extension and loft conversion

After

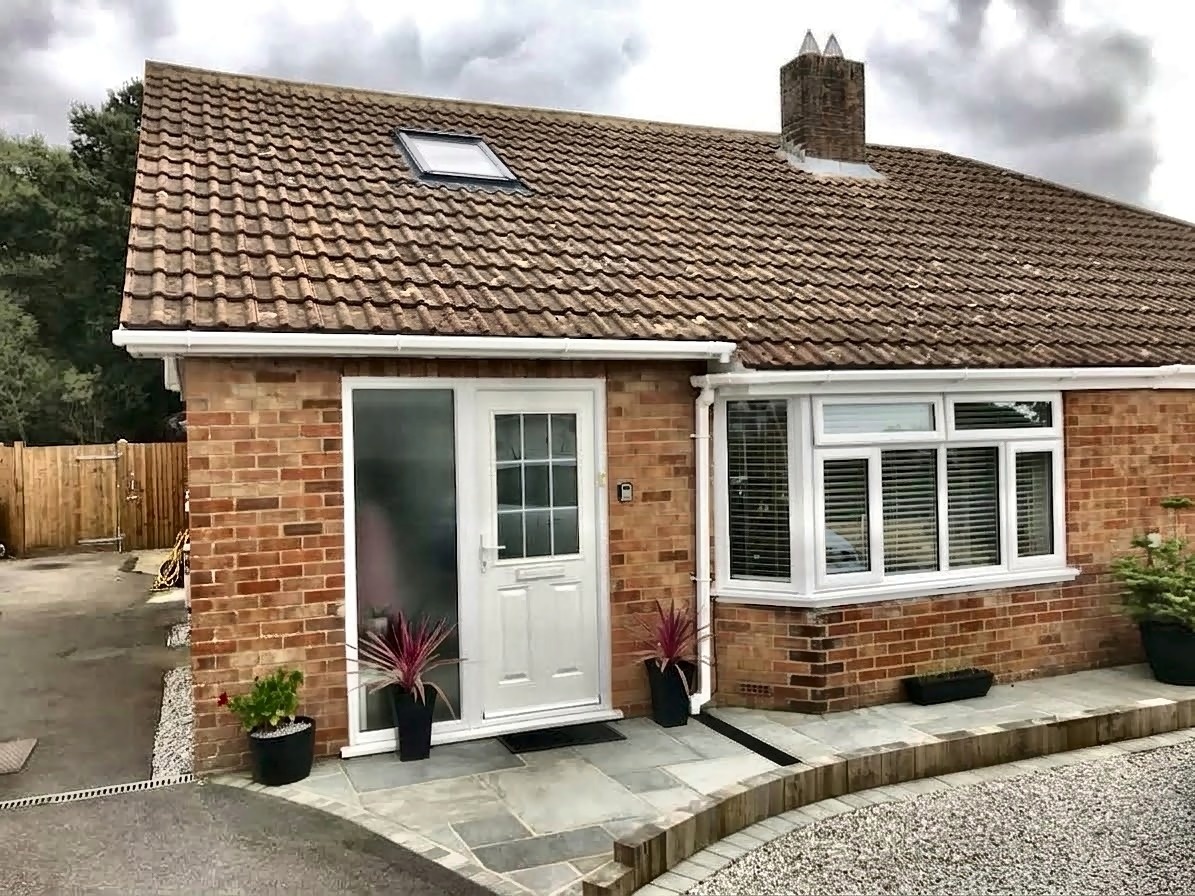

Completed front elevation with new entrance door

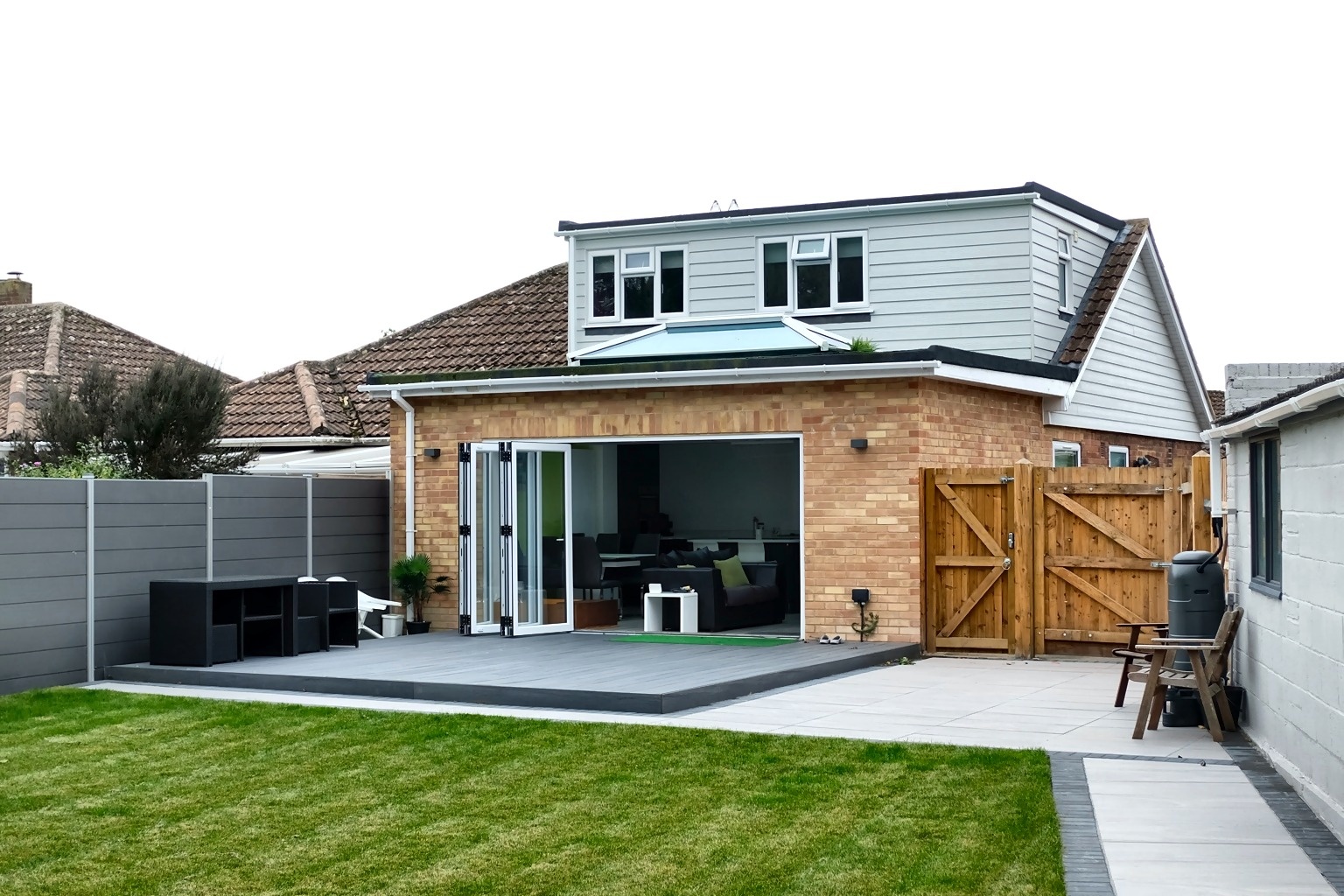

Completed rear extension and rear dormer loft conversion

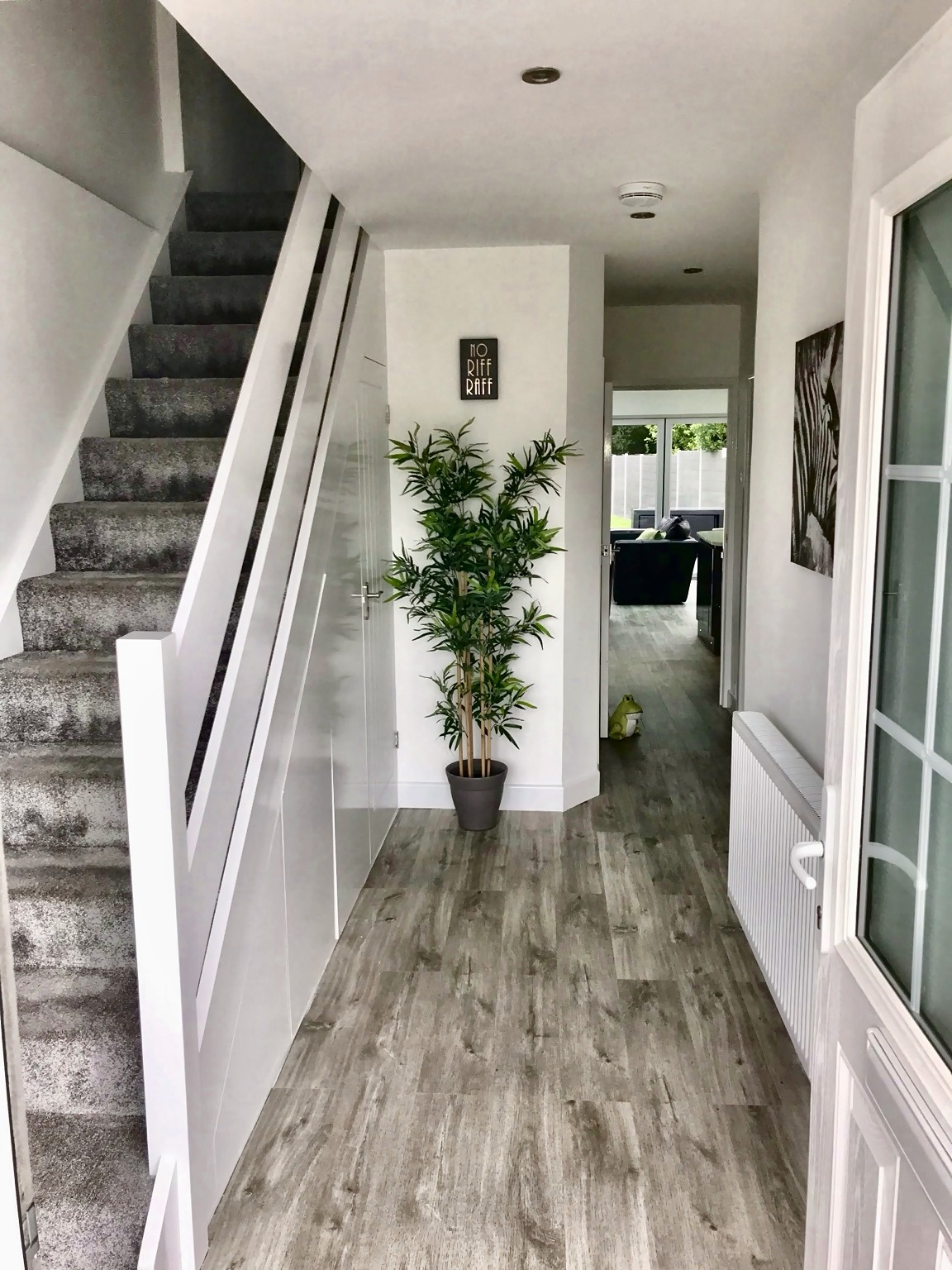

Completed hallway and staircase following the loft conversion

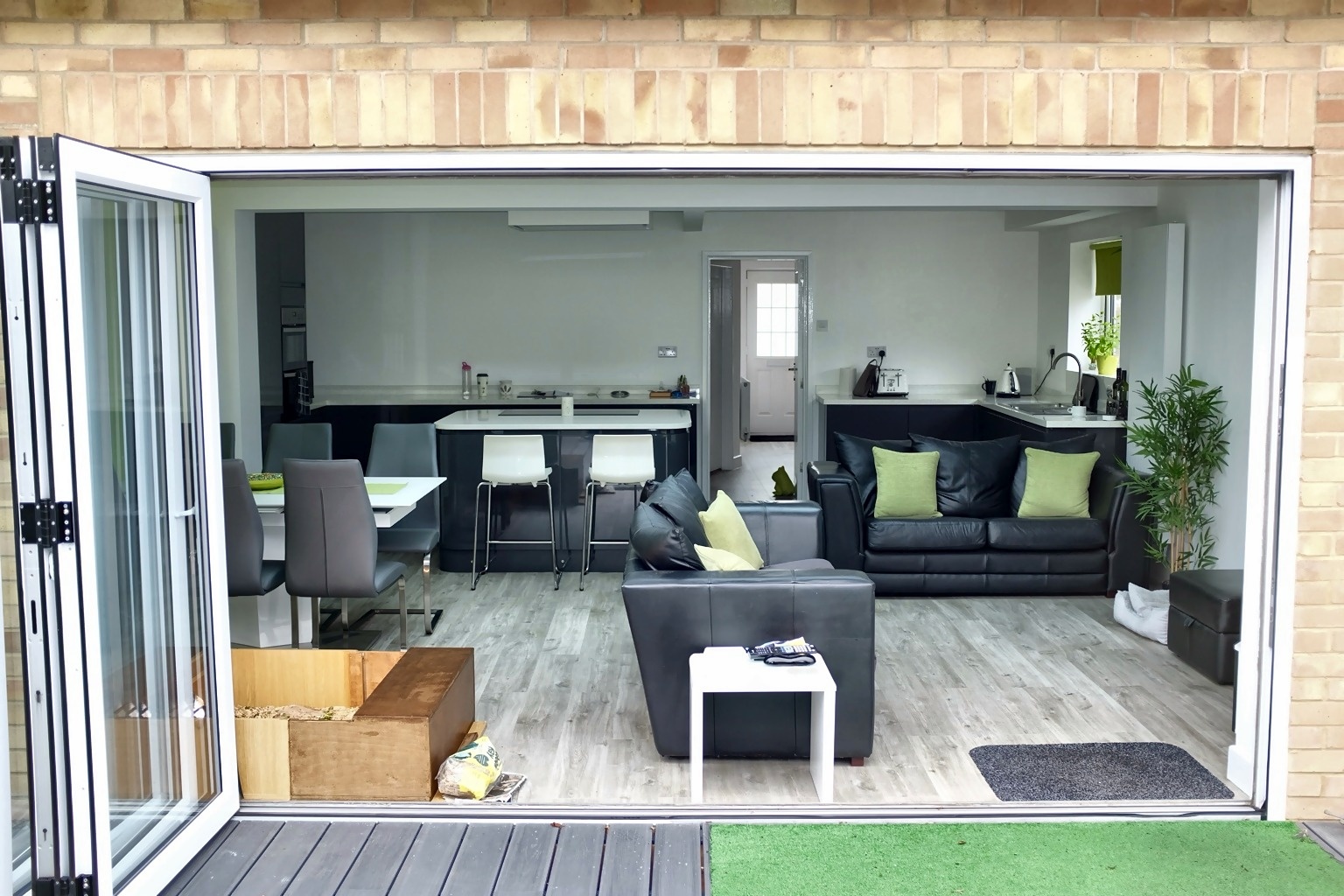

Completed open-plan kitchen and living space

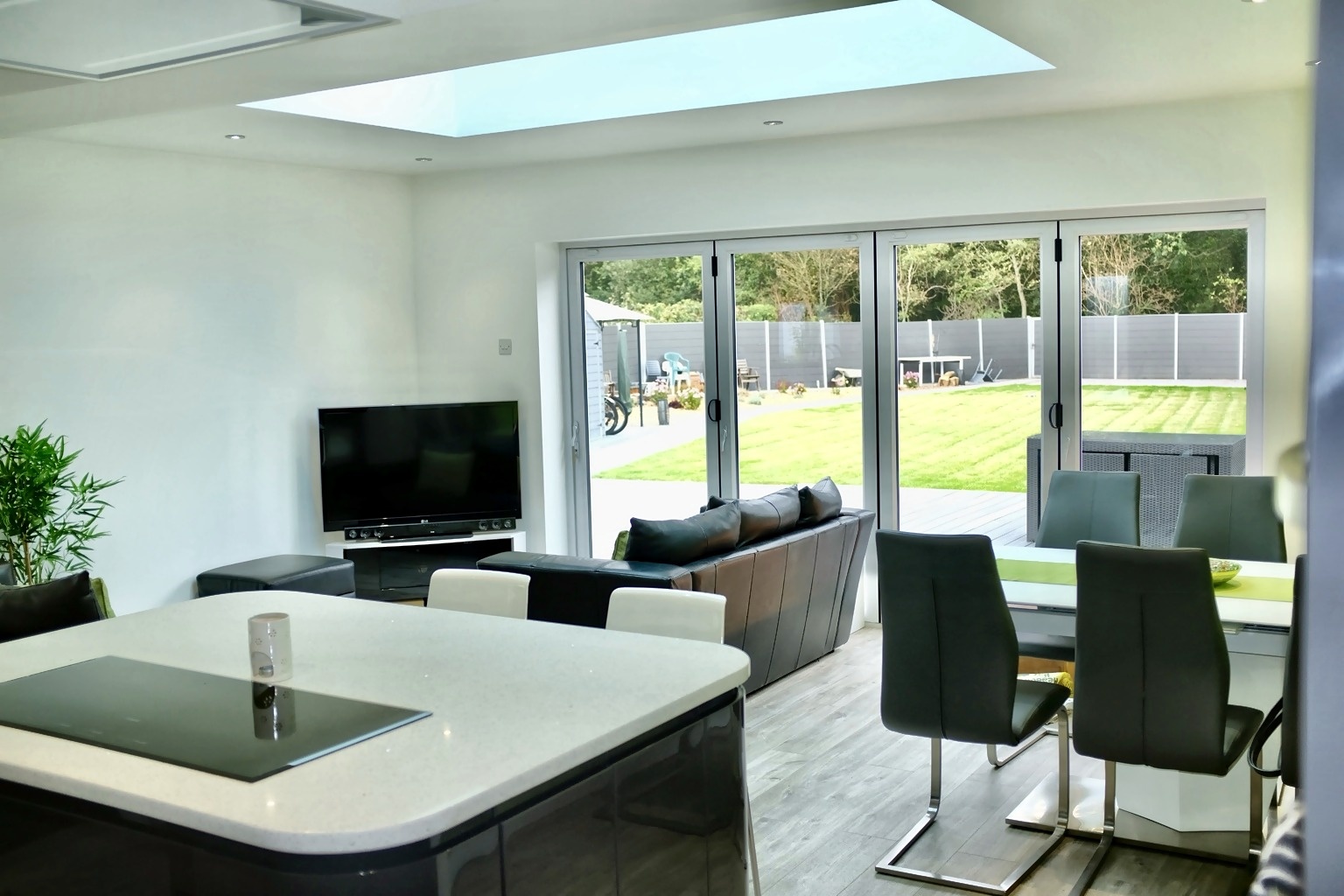

Completed kitchen, dining and living space with rooflight and garden connection

Drawings

Examples from the drawing package for the project. Select either sheet to open the full drawing.

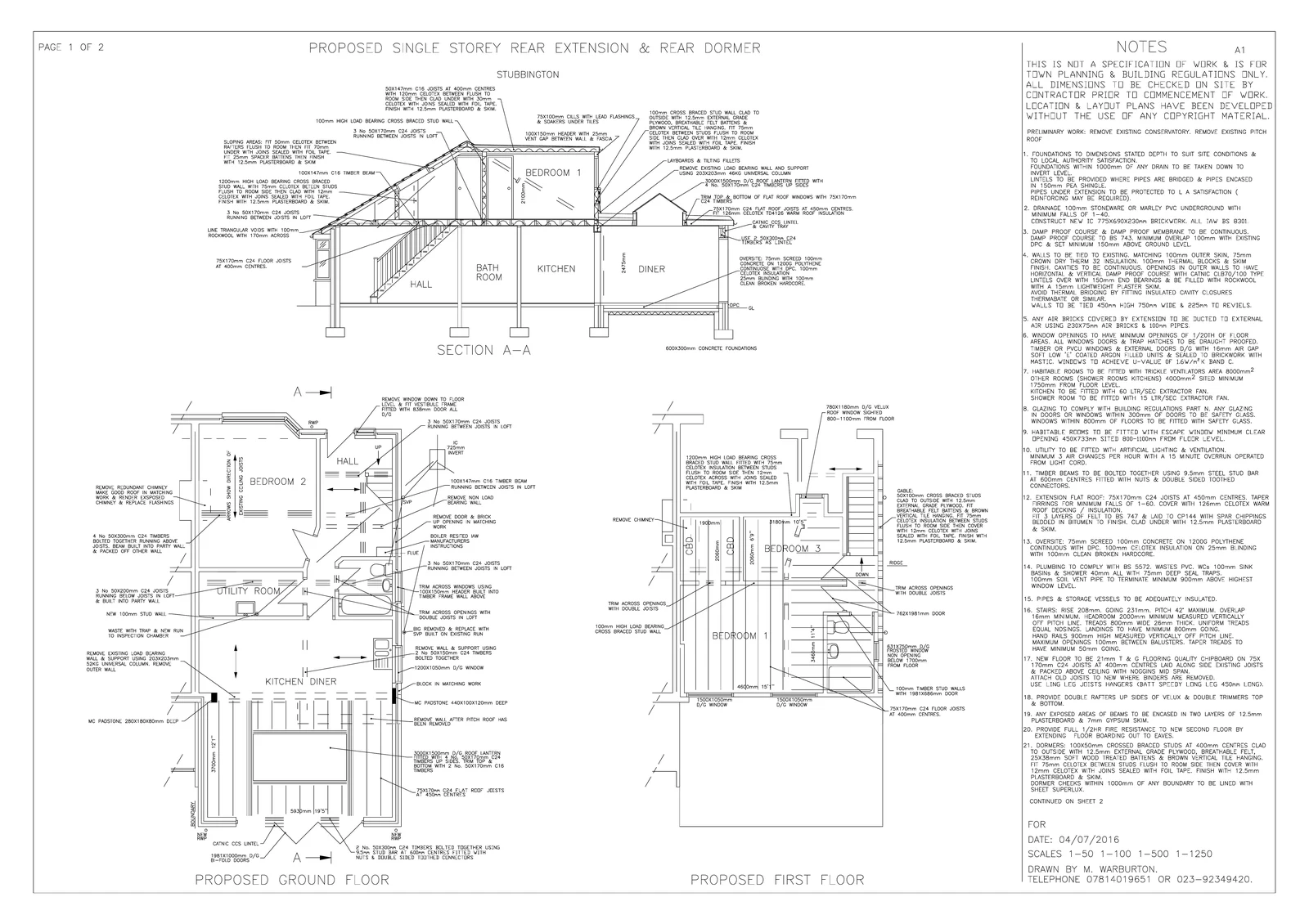

Stubbington planning drawing showing the proposed extension and loft conversion
Planning Drawing — Proposed Ground Floor, First Floor and Section

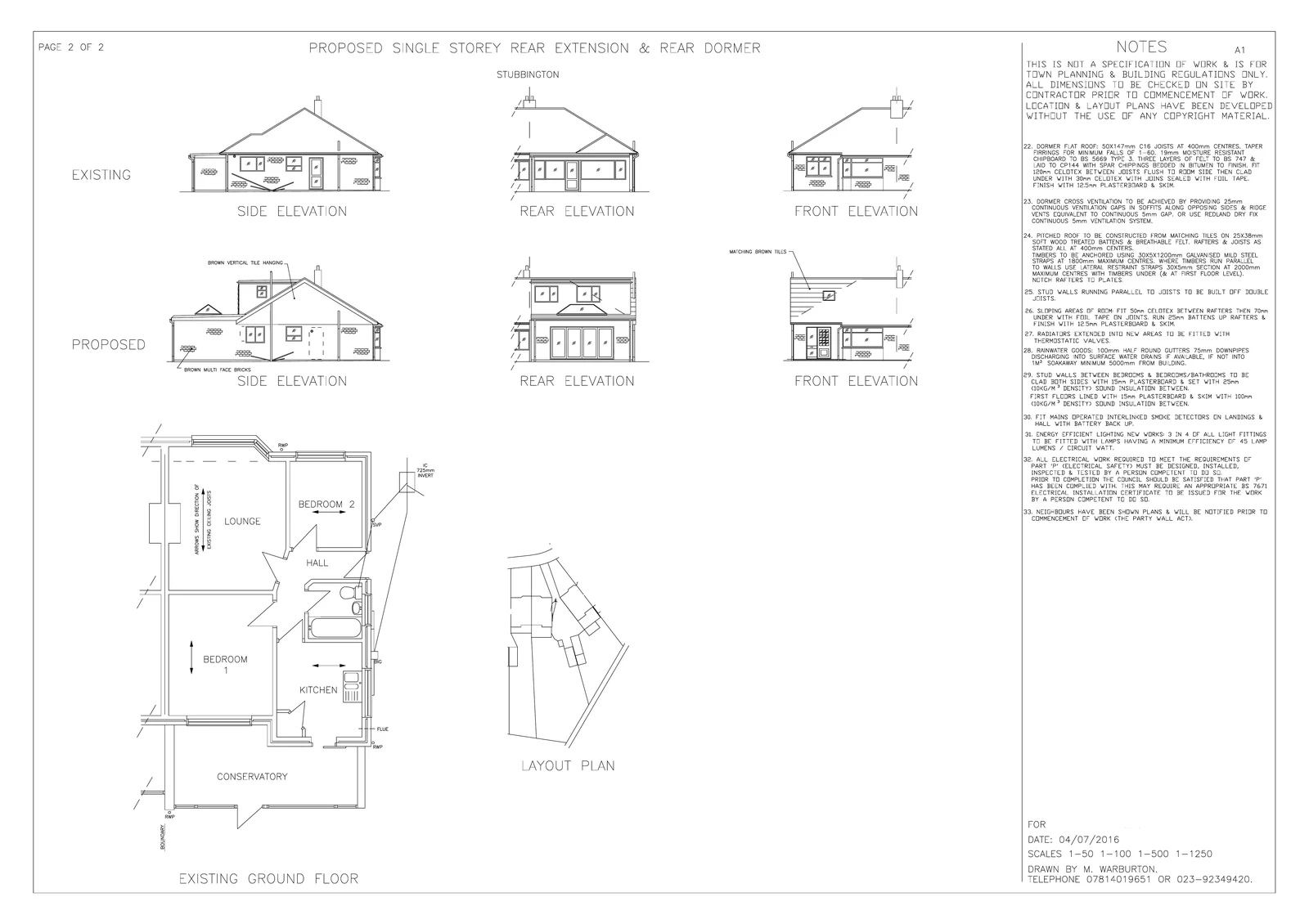

Stubbington building control drawing showing proposed elevations and layout plan
Building Control Drawing — Elevations and Layout Plan
